MAXDISC Endoscopic System

MAXDISC® Endoscopic System

2.1 mm working channelMaxDisc® abrasion devices

Description

MAXDISC ® Endoscopic System

MaxDisc ® provides treatment for patients who have failed conservative care and are not yet ready for major surgery. It is a minimal access procedure performed on an outpatient basis. Following manual removal of the offending herniation, the MaxDisc ® device is activated to help clean the disc and seal tears in the annulus. As a result, pressure in the disc is reduced, which eases symptoms.

The MaxDisc ® system with a 2.1 mm endoscope for performing minimally invasive discectomy procedures for contained lumbar spine herniations. Our innovative technique and design combines a safe and rapid procedure with outstanding clinical results. The fast, safe and precise procedure for bulging discs, contained herniations and degenerated discs.

Multiple treatment options under direct visualisation:

1. Nucleus Discectomy – Grasping forceps are used to remove excess nucleus material

2. Nucleus Ablation – By using our bipolar RF probe a safe ablation of the nucleus can be performed

3. Annulus Modulation – By using our flexible RF probe, pain receptors can be
effectively treated because the energy can be guided to the annular wall

4. Visualisation – The 2.1 mm endoscope makes the procedure safer, more precise, faster and easy to document

5. Steroids / stem cells – Visually targeted injection in disc and epidural space

6. Disc abrasion – Method for regeneration of painful degenerated discs

Clinical indications

– Intervertebral disc protrusion >3 mm

– Annular fissures

– Acute / Chronic

– Discogenic pain

Our technique

The goal of this treatment modality is to remove sub annular degenerated nucleus pulposus, depopulate chronic pain generating nerve endings in the annular fissure & achieving shrinkage of the Annulus Fibrosis with RF or low wattage laser.

Access to the disc is obtained with a posterolateral approach. Sub-annular discectomy is performed using mechanical tools, bipolar radiofrequency nuclear ablation and laser. Removed disc material can be used for histopathological examination. Dorsal annular fissures can be treated using bipolar radiofrequency probe or laser by heating & shrinking the annular fissures.

This intervention can be performed under vision using 2.1 mm MaxMoreSpine ® endoscope. MaxDisc ® is a truly visualised minimal access system for treatment of Discogenic Back & Leg pain.

content starter kit

Article code Product description Qty
1002-TS 002 TOM Endo Stick 2.1 mm working channel 1
1001-DC 006 Dilator for MaxDisc ® 4.2 mm 1
1001-ES 21 Working Sleeve 4.3 mm ID / 180 mm 1
1001-GW 001 Guide Wire 0.7 mm (20 pcs) 1
1001-CT 002A Trephine for MaxDisc ® Ø 2.0 mm / 231 mm Single Use 10
1001-SF 002 Grasping forceps 250 mm / Ø 4.5 mm upwards opening 1
1001-MF 001 Micro Spoon Tongs 1.9 mm / 335 mm 2
1001-MDA 001 MaxDisc ® Abrasion Device, Point Tip 1
1001-MDA 002 MaxDisc ® Abrasion Device, Bent Point Tip 1
1008-A 18 Spinal Needle - 18G (10 pcs) 1
9001-006 Coagulation Electrode Spherical 360 mm bent 10
1001-IS 011 MaxDisc Tray with lid 1
1001-GW 004 Guide Wire Dispenser 1

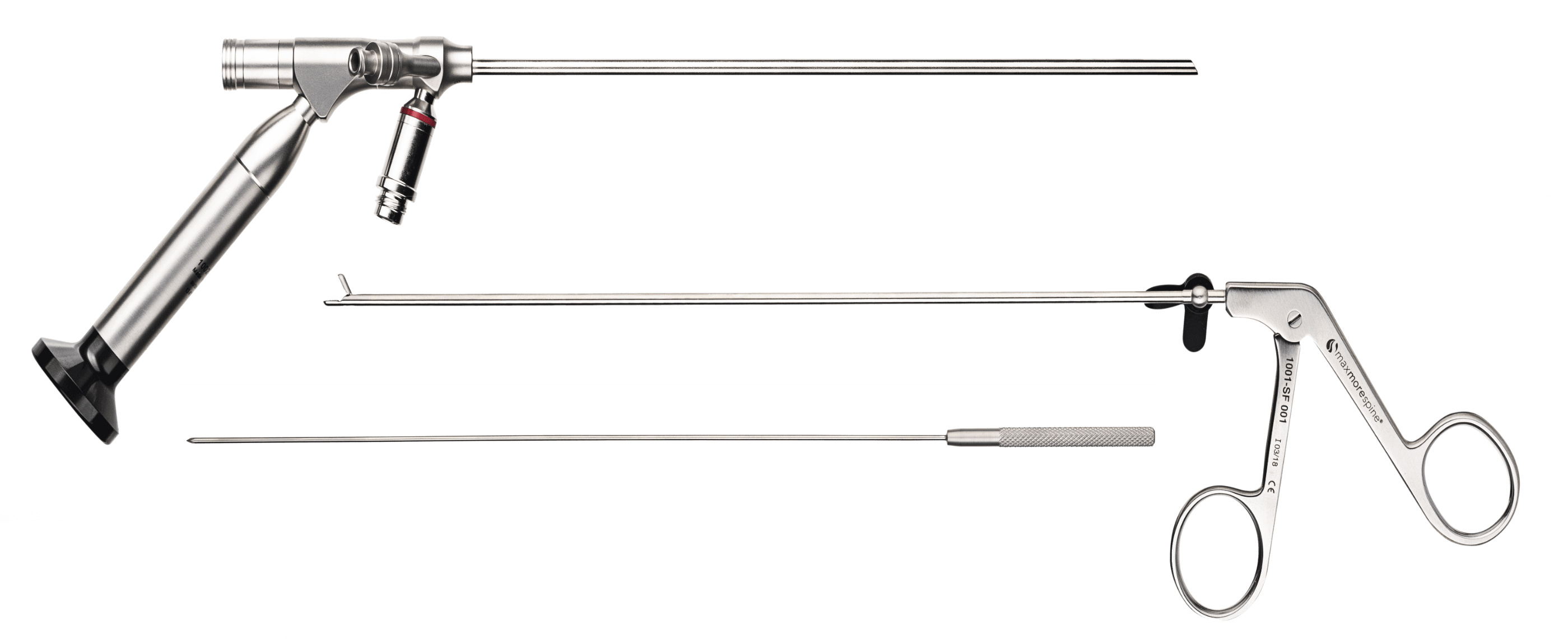

1001 - MD 1 MAXDISC ENDOSCOPIC SYSTEM

1001 MD 1 world max disc set
  • 2.1 MM WORKING CHANNEL
  • 208 MM WORKING LENGTH
  • 30° ANGLED DIRECTION OF VIEW
  • ONE SUCTION AND IRRIGATION CHANNEL WITH LUERLOCK
  • LATEST GENERATION OF IMAGE BUNDLES
  • SCRATCH-PROOF SAPHIRE GLASS ON THE DISTAL END AND OCULAR SIDE
  • STORZ- OLYMPUS- TEKNO / WOLF / ACMI ADAPTERS INCLUDED
  • MADE IN GERMANY
  • CE, FDA
